How the IRF730 MOSFET Powers Modern Circuits

The IRF730 isn’t just another N‑channel transistor you find on a shelf. It’s a workhorse that bridges the gap between modest low‑power parts and the beefier devices used in industrial drives. If you’ve ever needed a reliable switch that can handle a few hundred watts without breaking a sweat, this MOSFET is worth a closer look.

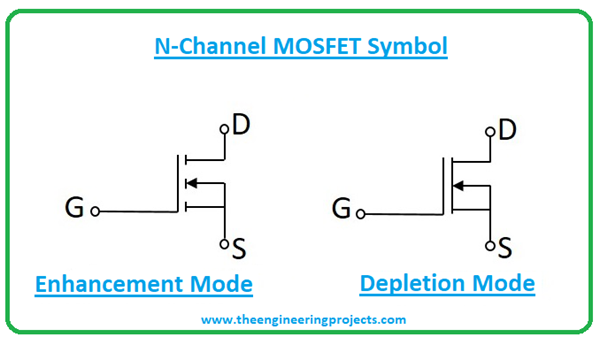

Key Electrical Specs at a Glance

• Drain‑Source Voltage (V_DS): 400 V
• Continuous Drain Current (I_D): 5.5 A (at 25 °C)
• R_DS(on): 1.5 Ω typical at V_GS=10 V
• Power Dissipation (P_D): 125 W (with proper heat sinking)
• Gate Threshold (V_GS(th)): 2.0 – 4.0 V

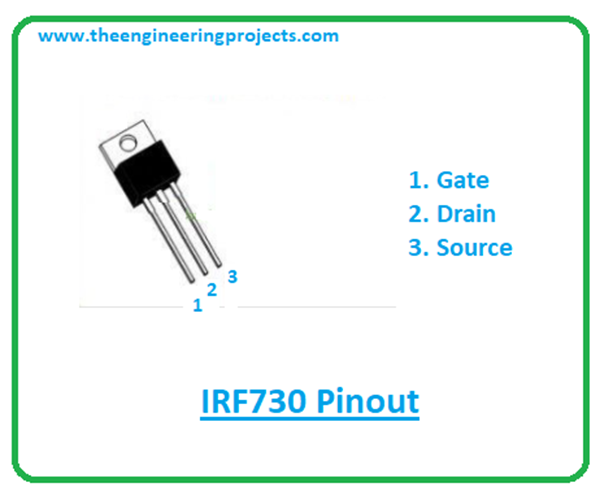

• Package: TO‑220AB

Those numbers hint at the sweet spot the IRF730 occupies. A 400 V rating means you can safely switch mains‑linked loads, while the modest current rating keeps the part affordable for hobbyist projects.

Why the R_DS(on) Matters

The on‑resistance is the silent hero in any MOSFET discussion. At 1.5 Ω, the IRF730 isn’t the lowest you’ll find, but it’s low enough that, for brief pulses or low‑current applications, the voltage drop stays minimal. Multiply that resistance by the current, and you get the conduction loss. For a 2 A load the loss is roughly 6 W, which a small heatsink can shrug off.

If you push the current toward the 5 A limit, the loss spikes dramatically, so you’ll need a beefier cooler or consider a MOSFET with a lower R_DS(on). That’s why the IRF730 shines most in scenarios where voltage is the primary concern, not sheer current.

Thermal Management Tips

Even a device rated for 125 W can overheat if you ignore thermal resistance. The TO‑220 package typically offers a junction‑to‑case thermal resistance of about 0.75 °C/W. Adding a standard 10 mm square heatsink drops the overall resistance to roughly 5 °C/W, keeping the junction well below its 150 °C limit under a 30 W loss scenario.

Don’t forget the small details: a thin layer of thermal paste, a snug mounting screw, and proper airflow can shave off a few degrees—enough to extend the part’s lifespan.

Typical Applications

Switch‑Mode Power Supplies (SMPS)

In a buck converter stepping down from a 300 V rail, the IRF730 can act as the high‑side switch. Its fast turn‑on/off times (t_on/t_off ~ 70 ns) keep switching losses low, while the 400 V rating gives a comfortable safety margin.

Motor Drivers

For low‑power DC motors used in robotics, the MOSFET offers a simple way to implement PWM speed control. Pair it with a flyback diode, and you’ve got a compact driver that can tolerate the occasional voltage spike when the motor stalls.

Relay Replacement

When you need a silent, low‑maintenance alternative to electromechanical relays, the IRF730 can switch AC loads up to around 150 W (with appropriate snubber circuitry). It’s a common trick in home‑automation boards that toggle lights or small heaters.

Driving the Gate: What You Need to Know

The gate capacitance (C_iss ≈ 1200 pF) isn’t negligible. If you’re toggling the MOSFET at high frequencies, the driver must source enough current to charge and discharge that capacitance quickly. A dedicated MOSFET driver IC—like the TC4420—delivers a few amps of peak current, ensuring crisp edges and reducing ringing.

For slower, microcontroller‑driven applications, a simple resistor‑pull‑up network can suffice. Just remember that the IRF730’s threshold sits near 3 V, so a 5 V logic level will turn it on, but a 3.3 V MCU may struggle to reach full conduction without a gate boost.

Design Pitfalls to Avoid

It’s easy to overlook the body diode. When the MOSFET switches off, the intrinsic diode conducts any reverse current, which can be problematic in bridge rectifier configurations. Adding an external Schottky diode in parallel can clamp unwanted reverse flow.

Another common mistake is undervaluing the safe operating area (SOA). The IRF730’s datasheet includes a graph showing permissible voltage‑current combos over various pulse widths. Exceeding that envelope—even briefly—can cause thermal runaway.

Choosing the Right Companion Components

• Snubber network: A series RC (e.g., 100 Ω and 0.1 µF) across the drain‑source can tame voltage spikes in inductive loads.
• Gate resistor: 10 Ω to 100 Ω limits ringing and protects the driver from high dI/dt.
• Flyback diode: For motor control, a fast recovery diode (1N5822) shunts the inductive kick.

These parts are inexpensive, yet they dramatically improve reliability, especially in noisy environments.

When to Look Beyond the IRF730

If your design calls for continuous currents above 6 A or you need a sub‑ohm R_DS(on), the IRF730 becomes a compromise. Devices like the IRFZ44N or the newer SiC MOSFETs offer lower losses at the cost of higher price and tighter gate‑drive requirements. But for many DIY and intermediate‑level projects, the IRF730 hits the sweet spot of cost, voltage rating, and ease of use.

Final Thoughts

In the sea of MOSFETs, the IRF730 stands out not because it’s the fastest or the most efficient, but because it delivers a robust 400 V capability without demanding exotic gate drivers or massive heat sinks. Whether you’re building a compact SMPS, a modest motor controller, or simply replacing a relay in a home‑automation board, this part offers a reliable balance of specs and price.
