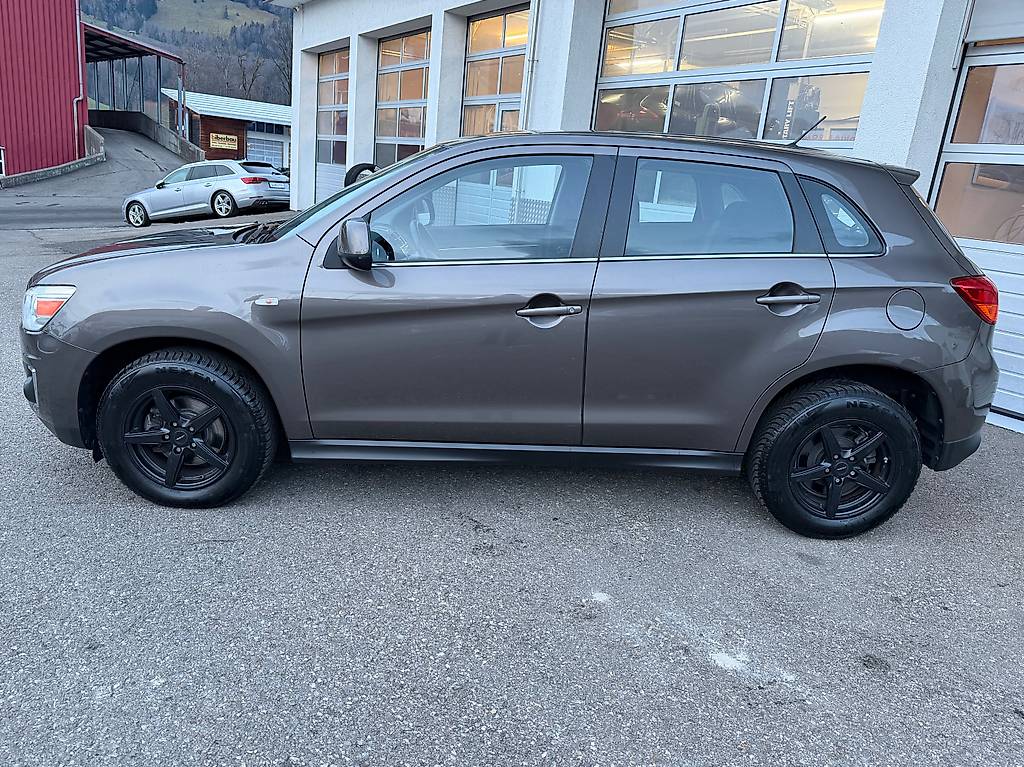

How to Repair a 2011 Mitsubishi ASX 1.8 DID 4x4 Guide

If you’ve just inherited a 2011 Mitsubishi ASX 1.8 DID 4x4, chances are you’re not thrilled by the idea of a costly dealership bill. Good news: many of the common hiccups on this compact SUV can be tackled with a modest set of tools and a bit of patience. Below is a practical road‑map that blends the essentials of routine care with step‑by‑step fixes for the most frequent problems.

Spotting the Usual Culprits

Before you dive into any repair, it helps to know which parts tend to give ASX owners the most grief.

• Timing belt wear – The 1.8 L Dual‑Injection Direct (DID) engine relies on a belt that typically needs replacement around 100 000 km.
• CV joint clicks – The 4x4 system’s front CV joints can develop audible clicks when turning sharply.
• Transmission fluid leaks – Small leaks around the plug or seal are common, especially after a few winters.
• Brake squeal – Hard‑wearing pads may cause a high‑pitched squeak during light braking.

Routine Maintenance Checklist

Sticking to a schedule can keep many of these issues from becoming full‑blown repairs.

• Change engine oil and filter every 5 000 km.
• Inspect timing belt for cracks every 80 000 km; replace at 100 000 km.
• Top up transmission fluid (check level with dipstick) every 30 000 km.
• Rotate tires and check wheel alignment quarterly.
• Replace brake pads before the wear indicator contacts the rotor.

DIY Repair: Timing Belt Replacement

The timing belt is a classic “do‑it‑yourself” candidate if you have a decent set of sockets and a torque wrench.

What You’ll Need

• New timing belt kit (including tensioner and idler pulleys).
• Socket set (including 10 mm and 13 mm sockets).
• Torque wrench calibrated to 25 Nm.
• Engine support brace.

Step‑by‑Step

1. Disconnect the negative battery terminal and secure the engine with the brace.
2. Remove the accessory drive belt, then loosen the crankshaft pulley bolt.
3. Rotate the engine to align timing marks on the crank and camshaft gears (both should point to “0”).
4. Release the tensioner, slide the old belt off, and replace it with the new one, ensuring the marks stay aligned.
5. Re‑tighten the tensioner, reinstall the crank pulley bolt to the specified torque, and double‑check all marks.
6. Re‑fit the accessory drive belt, reconnect the battery, and start the engine. Listen for smooth operation.

If the engine hesitates or sounds rough, re‑check the alignment – a small mis‑tick can cause big trouble.

Fixing a Leaking Transmission Fluid Plug

Most leaks are caused by a worn plug gasket. The good news? It’s a quick swap.

Tools Required

• Drip pan.
• 5 mm socket.
• New plug and gasket.

Procedure

1. Park the car on a level surface and engage the parking brake.
2. Place the drip pan under the transmission and loosen the plug with the 5 mm socket.
3. Remove the old plug, clean the threads, and replace the gasket.
4. Re‑install the plug and tighten to 12 Nm.
5. Check for drips after a short drive.

Addressing CV Joint Noise

A clicking sound during tight turns usually means the protective boot is cracked, allowing grease to escape.

• Raise the front wheel and remove the axle nut.
• Slide the CV axle out of the hub.
• Inspect the boot; if torn, replace the entire axle assembly – it’s cheaper than trying to re‑seal.
• Re‑install and torque the axle nut to 140 Nm.

Once the new boot is in place, the click should disappear, and the joint will stay lubricated longer.

Essential Tools for the ASX Owner‑Mechanic

Building a modest toolbox can save you time and trips to the garage.

• Torque wrench (range 5‑150 Nm).
• Metric socket set (4–19 mm).
• Extension bars and universal joints.
• Jack and jack stands rated for 3 ton.
• Fluid drain pans (minimum 3 L capacity).
• Basic hand tools – screwdrivers, pliers, and a pry bar.

Troubleshooting Quick Tips

When a symptom pops up, a systematic approach can pinpoint the cause faster.

• Engine misfire? Scan for error codes first; often it’s a spark plug or injector issue.
• Stalling on hills? Check the fuel filter – a clogged filter reduces pressure.
• Uneven brake feel? Bleed the brake system; air bubbles are common after pad replacement.
• Odd vibration at 80 km/h? Balance the tires and inspect the driveshaft for worn universal joints.

When to Call a Professional

Even the most diligent DIYer knows when a job is beyond the garage‑floor tools.

• Head gasket replacement – requires engine removal for thorough inspection.
• Transmission rebuild – internal components need a clean environment and specialized tools.
• Electronic control module (ECM) diagnostics – many issues stem from sensor communication that only a calibrated scanner can read.

Hiring a qualified technician for these tasks can prevent costly mistakes and keep your ASX humming for years.
