How to Replace the Rack‑and‑Pinion on a 2000 Honda Civic

When the steering feels vague or you hear clunking noises during turns, the rack‑and‑pinion might be at the end of its life. Swapping it out on a 2000 Honda Civic isn’t a weekend‑project for the faint‑hearted, but with the right preparation it’s absolutely doable.

Why the Rack‑and‑Pinion Matters

The rack‑and‑pinion is the heart of the steering system. It translates the rotation of the steering wheel into the left‑right motion of the wheels, giving you that direct feel you expect from a Civic. A failing unit can lead to uneven tire wear, wandering off‑center, or, in the worst case, a complete loss of steering control.

Tell‑Tale Signs It Needs Attention

• Whining or grinding noises when turning
• Loose or vague steering response
• Visible fluid leaks around the steering pump
• Uneven tire wear despite proper alignment

If you notice two or more of these symptoms, it’s time to start planning a replacement.

Tools & Parts You’ll Need

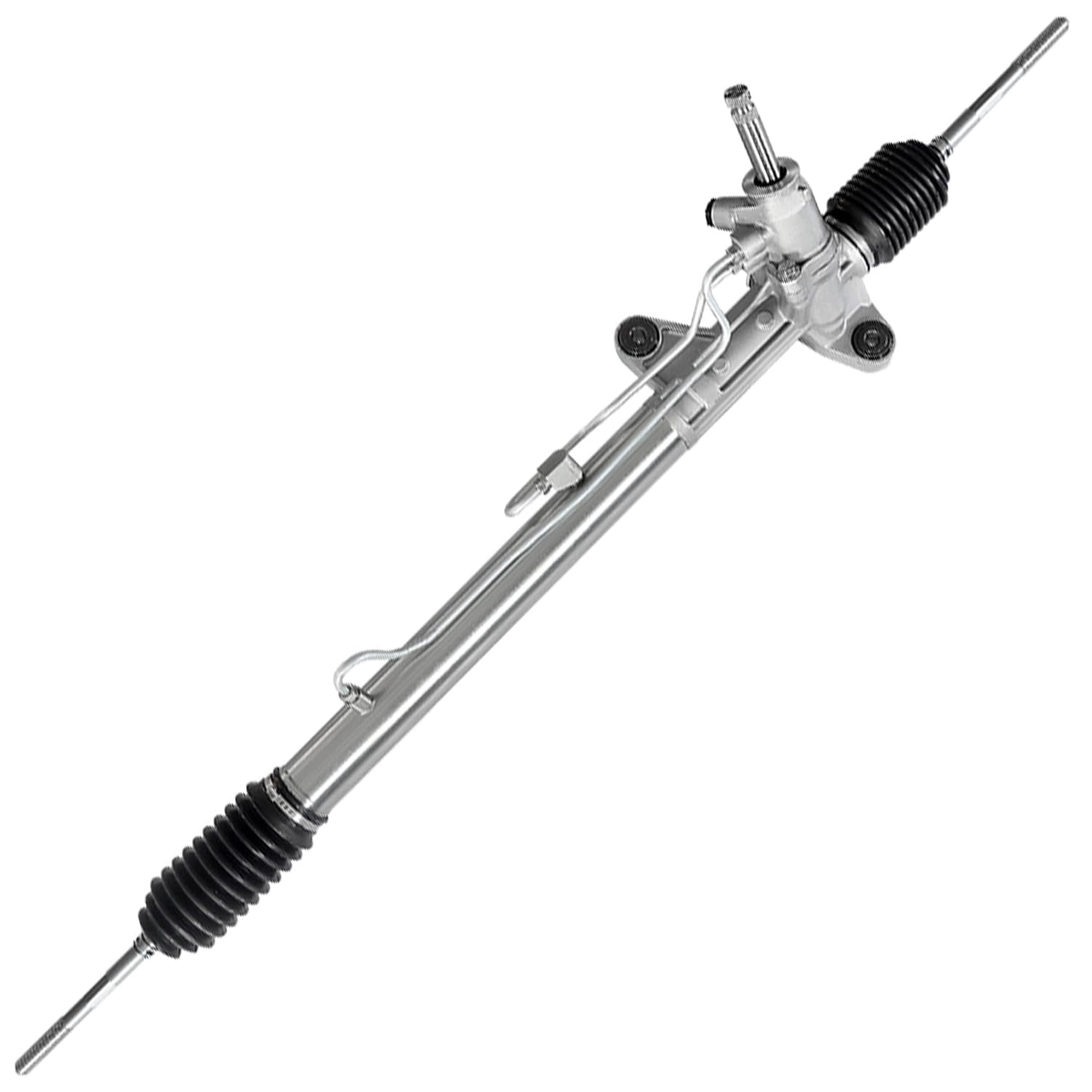

• New rack‑and‑pinion assembly (OEM or high‑quality aftermarket)
• Set of metric sockets (10 mm, 13 mm, 17 mm)
• Torque wrench (precise torque specs are crucial)
• Jack and jack stands – a sturdy 4‑point lift works best
• Drain pan for steering‑fluid spill
• Power steering fluid (DOT 4 recommended)
• Line wrenches or flare‑nut tools for the hydraulic hoses
• Penetrating oil, rags, and a small screwdriver set

Step‑by‑Step Replacement Process

Safety First

Disconnect the negative battery terminal. Engage the parking brake and block the rear wheels – you don’t want the car rolling while you’re under it.

Removing the Old Unit

1. Lift the car and support it on jack stands. Ensure the front wheels are off the ground.

2. Drain the power‑steering fluid into a pan. Remove the reservoir cap, then loosen the bleed screw at the rack.

3. Detach the steering column from the rack. Usually a single bolt holds the tie‑rod end to the column – remove it, then pull the column forward.

4. Disconnect the hydraulic hoses. Use line wrenches to avoid rounding the fittings. Push the hose clips back and pull the hoses off.

5. Unbolt the rack mounts. Four bolts secure the rack to the subframe; loosen them, then carefully slide the rack out. Expect a little resistance because of the fluid trapped inside.

Installing the New Unit

1. Prep the new rack by filling it with fresh power‑steering fluid. This prevents air pockets later.

2. Position the rack in the subframe and hand‑tighten the mounting bolts.

3. Reconnect the hydraulic hoses. Make sure the clips snap firmly into place.

4. Reattach the steering column. Align the tie‑rod end with the column socket, then torque the retaining bolt to the manufacturer’s spec (usually around 25 Nm).

5. Refill the power‑steering system. Pour fluid into the reservoir, turn the ignition on (engine off) and crank the steering wheel left‑right several times to purge air.

Final Tightening and Checks

After the fluid circulates, re‑torque all mounting bolts and the column connection. Look for any fresh leaks around the hose fittings – a quick tightening often resolves minor seepage.

Common Pitfalls & Tips

• Don’t rush the bleed. Air in the system causes spongy steering; keep cranking the wheel until fluid runs clear.
• Watch for stripped bolts. Use a high‑quality socket and don’t apply excessive force.
• Mind the rack orientation. Some aftermarket kits have a specific “front” side – a quick glance at the mounting holes usually tells you which way it should face.
• Use the correct fluid. Mixing DOT 3 with DOT 4 can alter viscosity and affect steering feel.

Final Checks & Test Drive

Lower the car, reconnect the battery, and take a short test drive. Pay attention to any unusual noises or a feeling of looseness. After a couple of miles, re‑inspect the fluid level and the hose connections one more time.

Replacing the rack‑and‑pinion on a 2000 Honda Civic may sound intimidating, but break it down into these manageable steps and you’ll restore that crisp, confident steering you remember from the early days. A little patience, the right tools, and a careful eye for detail go a long way.
