Step-by‑Step Guide to Retrofit Cruise Control on Mazda 2

Finding a reliable way to keep a steady speed without constantly tapping the accelerator can feel like a luxury on a budget‑friendly Mazda 2. Luckily, a retrofit isn’t as exotic as it sounds—just a bit of patience, the right parts, and a dash of DIY confidence.

Why Add Cruise Control?

• Fuel efficiency. Maintaining a constant speed reduces throttle modulation, shaving off a few percent on highway mileage.
• Reduced driver fatigue. Long stretches become less tiring when your foot can rest.
• Resale appeal. A factory‑like feature can bump the market value slightly.

Of course, the Mazda 2 didn’t ship with this gadget in many markets, so you’ll be doing a little “back‑engineering.”

Essential Components

Before you start, gather the following items. Most can be sourced from salvage yards, online forums, or a certified Mazda parts dealer.

• Original cruise‑control module (often labeled “CCM”).
• Throttle actuator (a small servo that adjusts the pedal).
• Wiring harness with appropriate connectors.
• Brake switch (some retrofits need an additional input).
• Speed sensor (if your model lacks a compatible one).
• Basic hand tools: sockets, screwdrivers, pliers.
• Torque wrench (to hit manufacturer specs when tightening).

Preparation Checklist

Take a moment to double‑check your inventory. Missing a single connector can mean back‑tracking hours later.

• Battery disconnected (safety first).
• Work area well‑ventilated—some older wiring insulation can emit fumes when cut.
• Service manual on hand for torque values and routing diagrams.

Safety Tip

Even though the system isn’t high‑voltage, a short circuit can damage electronics and spark a minor fire. Keep a spare fuse handy.

Installation Overview

The process breaks down into four major phases: removal, mounting, wiring, and calibration.

1. Remove the Existing Pedal Assembly

Start by lifting the driver’s side console. You’ll see the accelerator pedal bracket secured with two bolts. Unscrew them, then gently pull the pedal out—watch for the sensor cable still attached.

Disconnect the sensor plug; you’ll replace it with the throttle actuator later.

2. Mount the Throttle Actuator

Position the actuator where the original sensor sat. Most kits come with a bracket that bolts directly into the pedal’s existing holes. Tighten to 8 Nm (consult your manual if you’re unsure).

Now feed the actuator’s cable through the same path the sensor used, keeping it clear of moving parts.

3. Install the Cruise‑Control Module

The CCM sits in the engine bay, typically near the fuse box. Use the supplied bracket and secure it with three bolts. Route the harness so it doesn’t clash with the steering column or exhaust.

Connect the following:

• Power feed (12 V + ground) from the fuse box.
• Speed‑sensor input (usually a two‑wire signal).
• Brake‑switch input (if required).
• Actuator control line.

4. Wire the Brake Switch (If Needed)

Some retrofit kits need a separate switch that tells the CCM when you’re braking. Mount the switch on the brake pedal’s bracket, then splice its wire into the CCM harness. Double‑check polarity; a reversed connection will prevent the system from disengaging.

Calibration and Testing

After everything is bolted and wired, reconnect the battery. Turn the ignition to “ON” without starting the engine; the CCM should flash a status LED, indicating power.

Start the car and let it idle for a minute. Then:

• Accelerate to 45 mph (or your local speed limit).

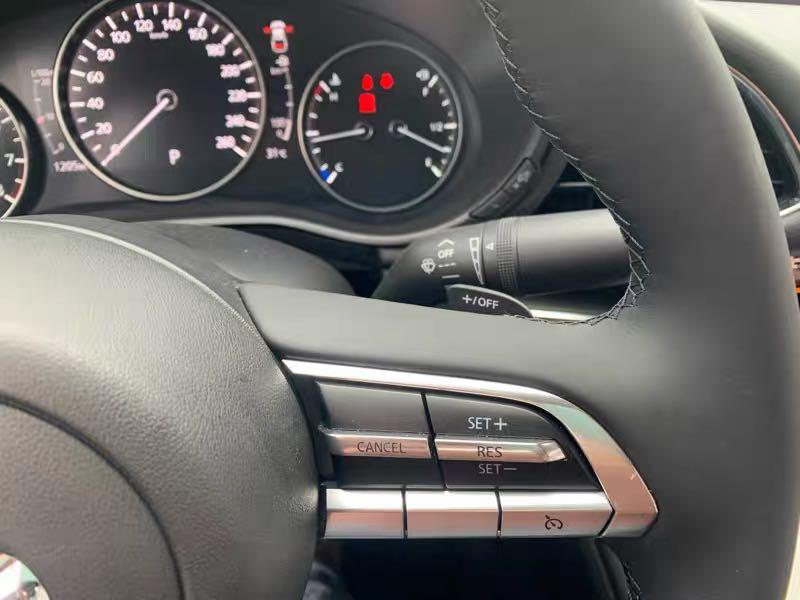

• Press the cruise‑control “ON” button on the steering wheel (or dash, depending on your kit).
• Allow the system to engage; you should feel a subtle tension on the accelerator pedal.

If the cruise control doesn’t lock in, re‑inspect the wiring for loose pins or swapped wires. Most modules have a diagnostic mode—consult the manual for error codes.

Common Pitfalls

• Incorrect torque. Over‑tightening can crack the actuator housing; under‑tightening leads to vibration.
• Misrouted wiring. A cable rubbing against the steering shaft can wear down quickly.
• Incompatible speed sensor. Older models use a magnetic sensor; newer ones use a Hall effect sensor. Mixing the two can cause erratic speeds.

Quick FAQ

Do I need to re‑program the ECU? Most retrofits work with the stock ECU; the CCM handles speed regulation independently.

Can I install the system myself? Yes, if you’re comfortable with basic automotive wiring and have access to a service manual.

Will the warranty be void? Adding aftermarket electronics generally voids that portion of the warranty, though the rest of the vehicle remains covered.

With the cruise control now humming quietly in the background, you’ll notice the difference on those long highway stretches. The Mazda 2 remains a nimble, efficient ride—now with a touch of convenience that feels almost factory‑standard.
