How to Choose and Use Atos Solenoid Valves Effectively

Solenoid valves might sound like a niche component, but they’re the quiet workhorses behind everything from irrigation systems to industrial automation. When you pair a solid design with the right know‑how, the result is a reliable, responsive flow‑control solution. This guide walks you through the essentials of Atos solenoid valves—what makes them tick, how to match them to your needs, and practical steps to keep them humming.

Understanding the Basics of Solenoid Valves

At its core, a solenoid valve is a compact, electrically‑activated gate. When a coil is energized, a magnetic field moves a plunger or armature, opening or closing the flow path. The simplicity of this mechanism belies its versatility: you can control liquids, gases, or even vacuum with a single pulse of electricity.

Most solenoids operate in two modes—normally closed (NC) or normally open (NO). In an NC valve, the flow stays shut until power arrives; a NO valve does the opposite, staying open until you power it down. Selecting the right mode hinges on safety, energy consumption, and the specific process you’re managing.

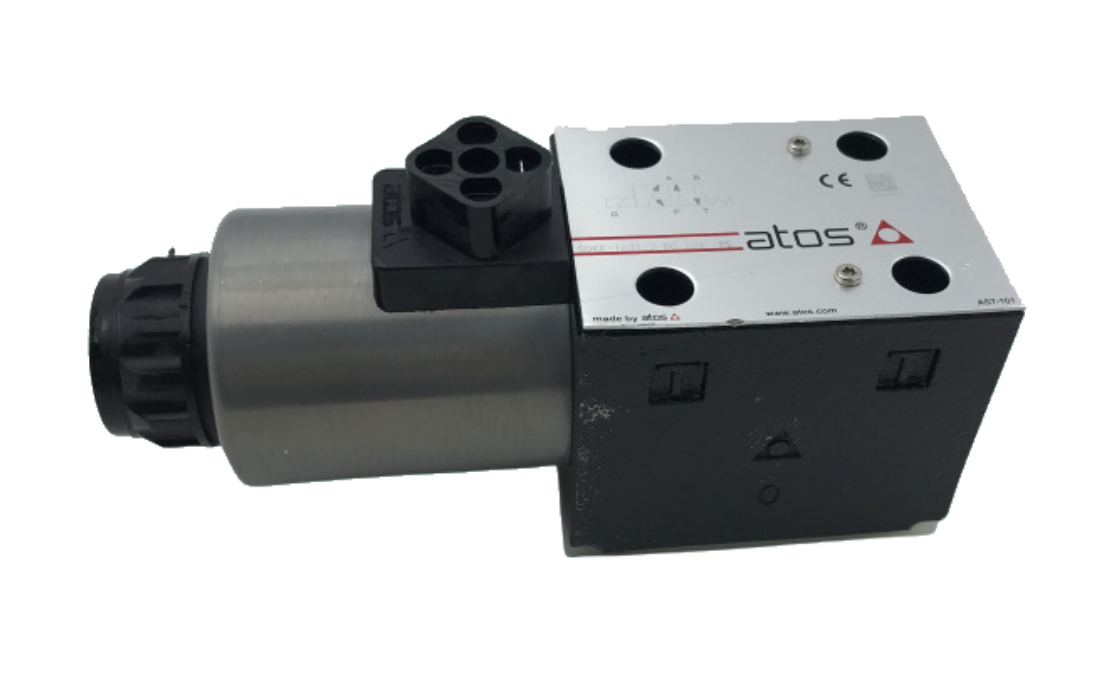

What Sets Atos Valves Apart?

Atos has built a reputation around durability and precision. Their valves typically feature high‑grade stainless steel bodies, robust sealing materials, and coils designed for low heat buildup. That combination translates to longer service intervals and fewer unexpected shutdowns—a big win for plants that can’t afford downtime.

Key Technical Specs

• Operating Pressure: 0 – 250 psi (typical), with specialty models reaching 600 psi.
• Temperature Range: –40 °C to +125 °C, suitable for most industrial fluids.
• Coil Voltage: 12 V DC, 24 V DC, 120 V AC, and 240 V AC options.
• Response Time: 5 ms to 30 ms, depending on coil size and fluid viscosity.
• Seal Materials: EPDM, Viton, and PTFE for chemical resistance.

Selecting the Right Atos Valve for Your Application

Choosing a valve isn’t just about matching a part number; it’s a balancing act between fluid dynamics, electrical constraints, and environmental factors.

• Fluid Type: Water, oil, corrosive chemicals—pick a seal material that won’t degrade.
• Pressure Requirements: Verify that the valve’s maximum rating exceeds your system’s peak pressure.
• Voltage Availability: Align coil voltage with existing power supplies to avoid costly converters.
• Mounting Space: Compact models fit tight panels, while larger units accommodate higher flow rates.
• Cycle Frequency: High‑frequency applications benefit from low‑heat‑dissipation coil designs.

Installation Tips to Avoid Common Pitfalls

Even a top‑tier valve can underperform if it’s not installed correctly. Keep these checkpoints in mind before you tighten the last bolt.

Wiring and Electrical Connections

Start by confirming the coil’s voltage and phase requirements. Use twisted‑pair wiring for AC coils to reduce electromagnetic interference, and always include a fuse rated slightly above the coil’s in‑rush current. If you’re employing a diode across a DC coil, place it in reverse‑bias to protect against voltage spikes.

Mechanical Mounting Considerations

Secure the valve body with a gasket that matches the fluid’s temperature. Over‑tightening can crush the seal, causing leaks; under‑tightening may lead to vibration‑induced wear. For vibrating machinery, consider a vibration‑isolating bracket to extend the valve’s lifespan.

Maintenance Practices that Extend Valve Life

Regular check‑ups are more about prevention than repair. A quick visual inspection each quarter—looking for corrosion, loose wires, or hardened seals—can flag a problem before it escalates.

• Clean the coil surface to avoid dust buildup that could cause overheating.
• Test coil resistance with a multimeter; a significant drift often signals winding damage.
• Replace seals every 12 months in harsh chemical environments, even if they appear intact.

Document each maintenance event. A simple logsheet helps you spot trends, like recurring coil failures after a specific operating hour count.

Troubleshooting: When Things Don’t Work

If the valve refuses to open, start with the basics: is power actually reaching the coil? A quick voltage check at the terminal can save hours of guesswork.

• No Response: Verify coil continuity; a broken wire or burnt coil will show infinite resistance.
• Partial Opening: Inspect the plunger for debris; even a small particle can jam the mechanism.
• Leakage When De‑energized: Confirm you have the correct NC/NO configuration for your system.
• Overheating Coil: Ensure the duty cycle matches the valve’s rating; prolonged on‑time can melt insulation.

Where to Find Support and Documentation

Atos offers a comprehensive online portal with datasheets, wiring diagrams, and installation videos. Registering your product serial number unlocks firmware updates and technical bulletins—particularly useful for newer models with advanced diagnostics.

For hands‑on assistance, their regional support centers provide phone and email help, usually responding within one business day. If you’re tackling a unique fluid or extreme pressure scenario, consider reaching out to their application engineers; they can suggest custom seal options or modified coil configurations.

Choosing the right Atos solenoid valve and keeping it in good shape isn’t a one‑time effort—it’s an ongoing partnership between design, installation, and maintenance. With the pointers above, you’ll be better equipped to make informed choices and enjoy reliable performance for years to come.
